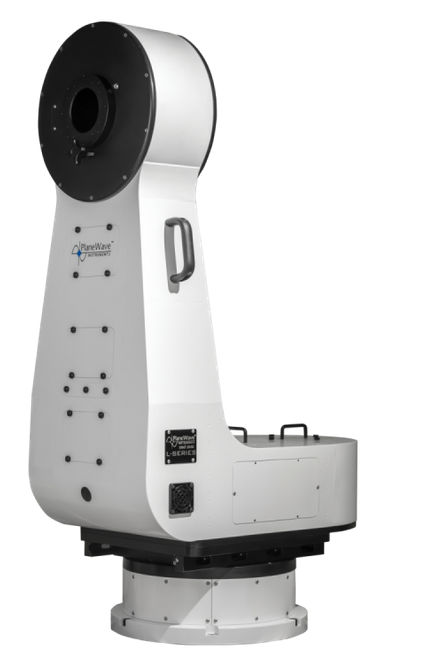

Planewave L-500 Direct Drive Mount |
| |
 |
|
| Product Futures |
|
| - Load capacity of 200 lbs (91 kg) |
- Direct-drive motors on each axis for smooth, fast, and virtually silent
movement of the telescope |
| - Slew speeds up to 50 degrees per second |
| - High resolution encoders on each axis for precise positioning |
| - Zero backlash |
| - Zero periodic error |
| - PointXP mount modeling software |
| - Enclosed electronics |
| - Through the mount cabling |
| - Alt/Az, or equatorial installation orientation |
| |
| Combines versatility, simplicity and affordability by combining all the technology of our observatory class telescopes into a compact stand-alone mount. In its Alt/Az configuration it is considerably more compact than its equatorial counterpart, allowing a larger telescope to fit in a smaller enclosure. Unlike traditional German Equatorial mounts, there are no meridian flips to deal with, and no large protruding counterweights to create a dangerous hazard in a public observatory. Alt/Az is more intuitive to use and no polar alignment is needed. Besides, it is the way the pros do it! For added flexibility, the L-Series mounts can be installed in either Alt/Az, or equatorial mode with the optional wedge accessory. |
|
|
|
|

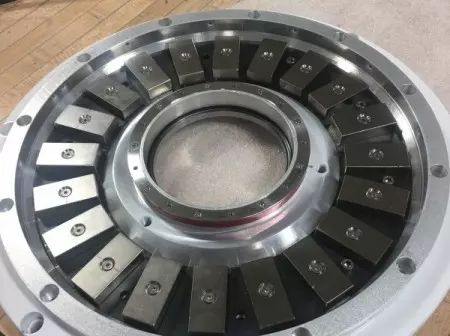

Direct
drive motors and
encoders |
Direct Drive
motors and
on-axis encoders
eliminate the
need for gears,
thereby
eliminating
backlash and
periodic error.
With
high-resolution
encoders
providing the
feedback for the
direct drive
motors, not only
will the
telescope track
without periodic
error and
backlash, the
mount will
also counter
wind gusts with
precise servo
feedback. |
|
|
|
Incredible Slew
Speed |
|
The direct drive
motors can move
the telescope at
speeds up to 50
degrees per
second for
tracking
satellites or
just to minimize
target
acquisition
time. |
|
|
|

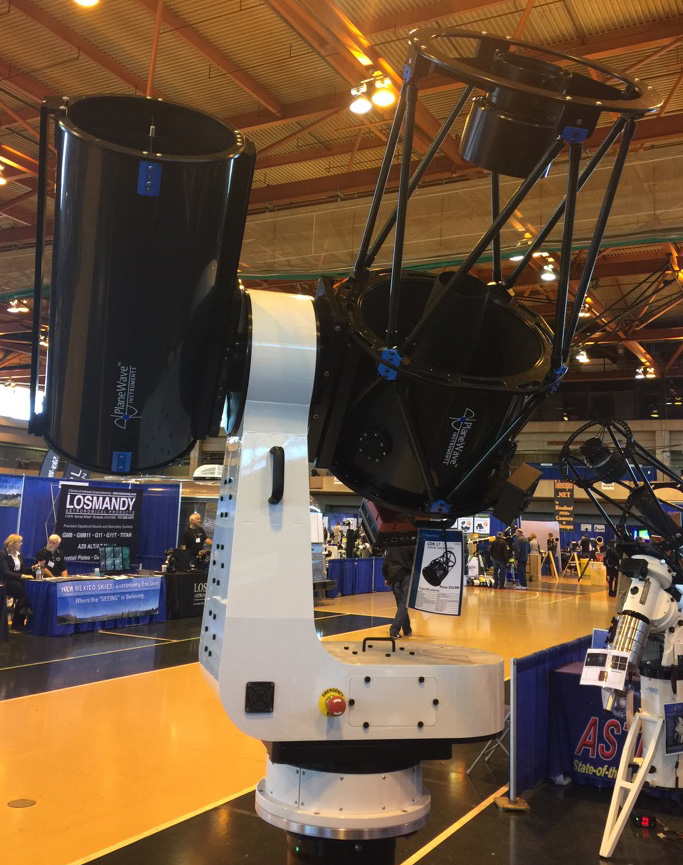

Dual
mounting bracket |
|
PlaneWave style
mounting bracket
to hold CDK17/20
onto inside of
fork arm with
additional
option of
mounting a scope
on the outside
of the fork arm.
Optional
dovetail clamp
required. |
|
|
 |
| Direct drive motors - encoders |
 |
| Cable mount |
 |
| Azimut balance |
|
|
 |
| Slew Speed to 50 degrees per second |
|
|
 |
| Dual Mounting Bracket |
|
|
|
|

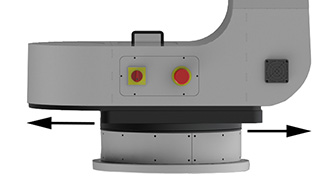

Azimuth
dovetail balance
system |
|
For precise
center of
gravity balance
whether in
Alt-Az or
Equatorial
configuration |
|
|
|
Through
the mount

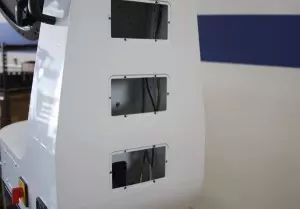

cabling |
|
Access panels in
the fork arm and
azimuth axis
allow for camera
equipment
cabling through
the inside of
the mount. |
|
|
|
Mounting
System
specification |
|
Type |
Alt-Azimuth /
Equatorial
Direct Drive
Mount |
|
Weight |
257 lbs (100 kg) |
|
Component
Weights |
Azimuth Base –
121 lbs, Fork
Arm – 136 lbs |
|
Max. Load
Capacity |
200 lbs (91 kg) |
|
Latitude Range |
0 to 90 degrees,
Northern and
Southern
hemispheres |
|
Cable Management |
Equipment cables
can be wired
through mount |
|
Swing-Through
Length (From
Altitude Axis) |
25.62″ |
|
Control
Electronics |
PlaneWave
Interface dual
axis telescope
control |
|
User Interface |
PlaneWave
Interface 4
(PWI4) Control
Software with
integrated
PointXP mount
modeling
software |
|
Homing Sensors |
Home position
sensors are
included
allowing the
mount can find
its home
position on
power up. |
|
Slew Rate |
20 degrees per
second (standard);
50 degrees per
second
(maximum), both
axes |
|
Power
Requirement |
Accepts 120 to
240 VAC.
Supplied with
120 VAC 15A IEC
Type B Regulated
Power Adapter. |
|
Motor Control |
Industrial grade
brushless motor
control system
and built in
electronics |
|
Motor – Azimuth
and Altitude |
Direct Drive 3
Phase Axial-Flux
Torque Motors |
|
Encoder –
Azimuth and
Altitude |
152mm stainless
steel encoder
ring with reader
built into the
azimuth and
altitude axes.
18,880,000
counts per
revolution
(0.069 arcsecond
resolution). |
|
Motor Torque |
Approximately 20
ft-lbs
continuous; 50
ft-lbs peak |
|
Drive
Electronics |
Industrial grade,
off-the-shelf
brushless motor
drives for each
axis with custom
designed
interface card |
|
Telescope
Control Software |
PlaneWave
Interface
(PWI4).
Incorporates
PointXP mount
modeling
software by Dave
Rowe. Provides
HTTP and ASCOM
control
interfaces.
MaxIm DL is
required for
camera control
when building a
pointing model
within our PWI4
software. |
|
Pointing
Accuracy |
<10 arcsecond
RMS with PointXP
Model |
|
Pointing
Precision |
2
arcseconds at
sidereal
velocity
|
|
Tracking
Accuracy |
<
0.3 arcseconds
over a 5 minute
period at
sidereal
velocity
|
|
System Natural
Frequency |
10 Hz or greater |
| Ordercode:
L500 |
Price on
request |
|
|
| |
